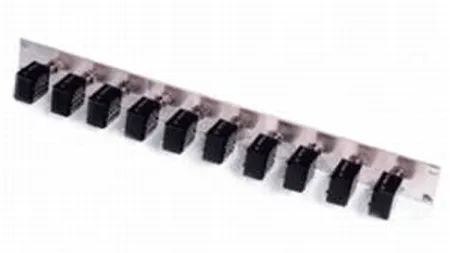

RK115 Rack Panel For Multi VB37M or VB39M Mounting - 19" 1RU High
The RK115 rack panel provides a convenient and cost-effective means to mount up to ten model VB37M or VB39M video balun transceivers. While the RK115 is designed for use with a standard 19" rack cabinet, it can be easily adapted for wall mounting, providing a convenient way to mount and organize units and cable. Model VB37M and VB39M transceivers (not included) connect directly to the RK115 by means of BNC type connectors. No power is required for the RK115 or VB37M and VB39M video balun transceivers.
Features:
- Holds 10 VB37M or VB39M video balun transceivers
- Easily adapted for wall mounting
- Fits standard 19 rack cabinet
- Easy to install
Twisted Sender is recommended for use with unshielded twisted pair (UTP) wiring. The systems will operate over wire gauges from 26 AWG through 12 AWG but are optimized for 24 AWG. Category cabling may be used. Individually shielded pairs should be avoided as they drastically reduce the operating range of the systems. Multi-pair cable with an overall shield is acceptable. Video can be operated in the same communication cable coexistent with telephone, computer, control signals, power voltages and other video signals. While video may be routed through telephone punch down block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.
