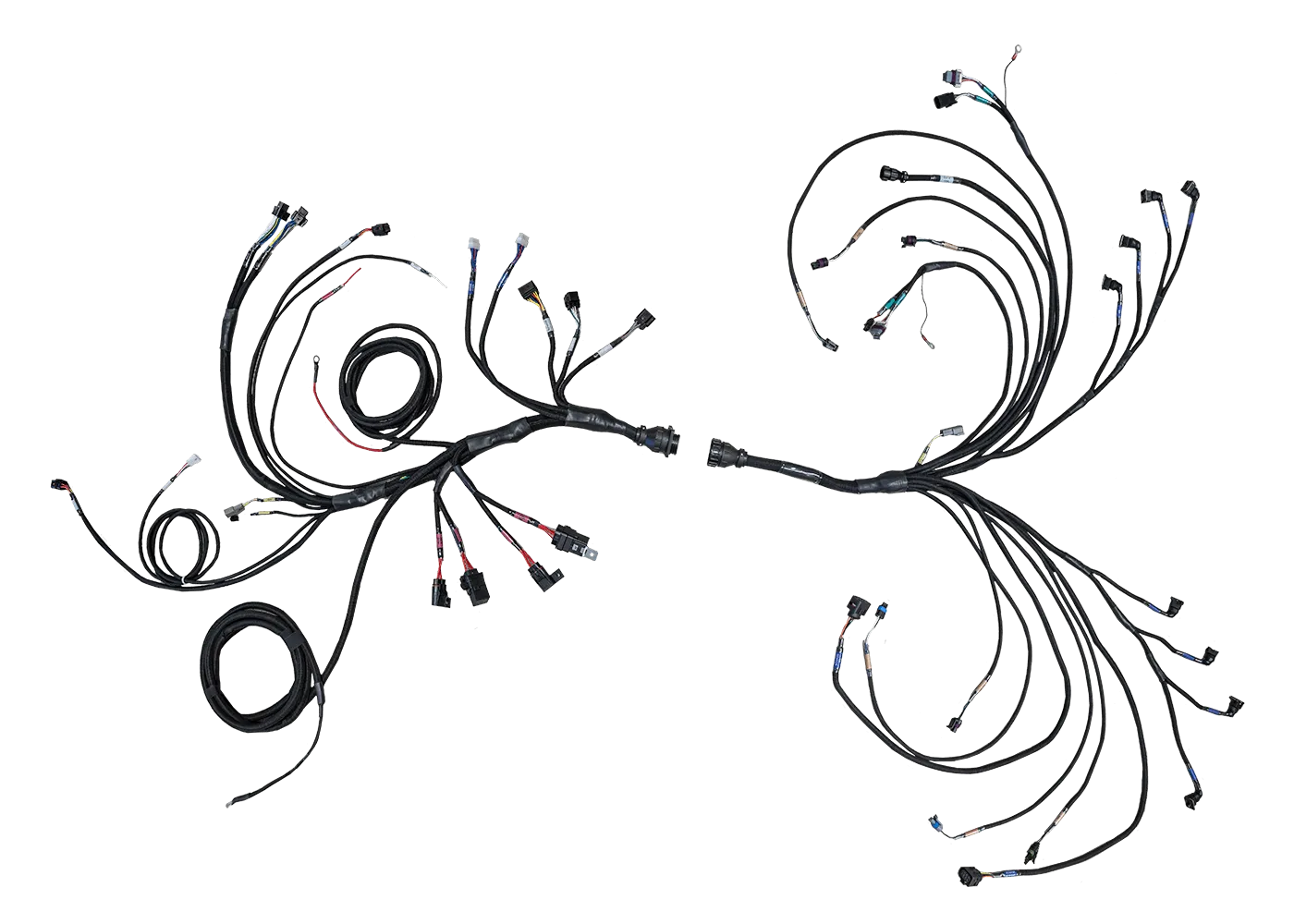

• PRO550 V8 Complete Harness is a harness designed to install a FuelTech FT550 on mostly any racing V8 application. It comes setup for 8 EV1 injectors.
• It has most of the engine sensors pre-wired: TPS, hall and VR crank trigger, hall and VR cam sync, fuel pressure, oil pressure, wastegate pressure, turbo back pressure, coolant and intake air temperature, driveshaft and more.
• Comes pre-wired for our EGT-8 CAN
• It can be used directly with a distributor type ignition or with additional auxiliary coil harnesses to have coil per cylinder ignition such as smart coils or the FuelTech FTSPARK CDI unit with an additional harness.
• This harness is setup for two nano wide band o2 conditioners and two o2 sensors. You can also use an additional adapter for a dual channel Alcohol o2 with NTK o2 sensors (requires Bosch to NTK adapters).
• There is an INPUTS connector to custom wire up to 5 additional input channels for the engine or chassis datalogging (i.e. transbrake button, suspension travel sensors, input shaft RPM, staging button and much more).
• There are 2 additional OUTPUTS connectors to wire custom outputs like wastegate boost control solenoids, transbrake solenoid, dump and lockup valves, gear shift, nitrous stages and more.

*In order to wire the additional INPUTS & OUTPUTS terminated in this harness, you must order this harness with the optional mating connector kits.

CONTENTS OF PACKAGING

• 1 PRO550 V8 Complete Harness
• 1 Operation and installation guide
