Additional Features:

• First RF path from 100 kHz to 2.2/3/4/6 GHz
• Optional second RF path from 100 kHz to 2.2/3 GHz
• Up to two complete baseband paths
• 2×2 MIMO with realtime fading possible
• Two instruments combinable for 2×4 or 4×2 MIMO
• Optional fading simulator with up to 40 fading paths
• I/Q modulator with 200 MHz RF bandwidth
• Optional baseband generator with realtime coder and arbitrary waveform generator
• Outstanding RF performance
• Support of 3GPP LTE FDD and TDD, 3GPP FDD/HSPA/HSPA , GSM/EDGE/EDGE Evolution, TD-SCDMA, WiMAX™ and all other important digital standards

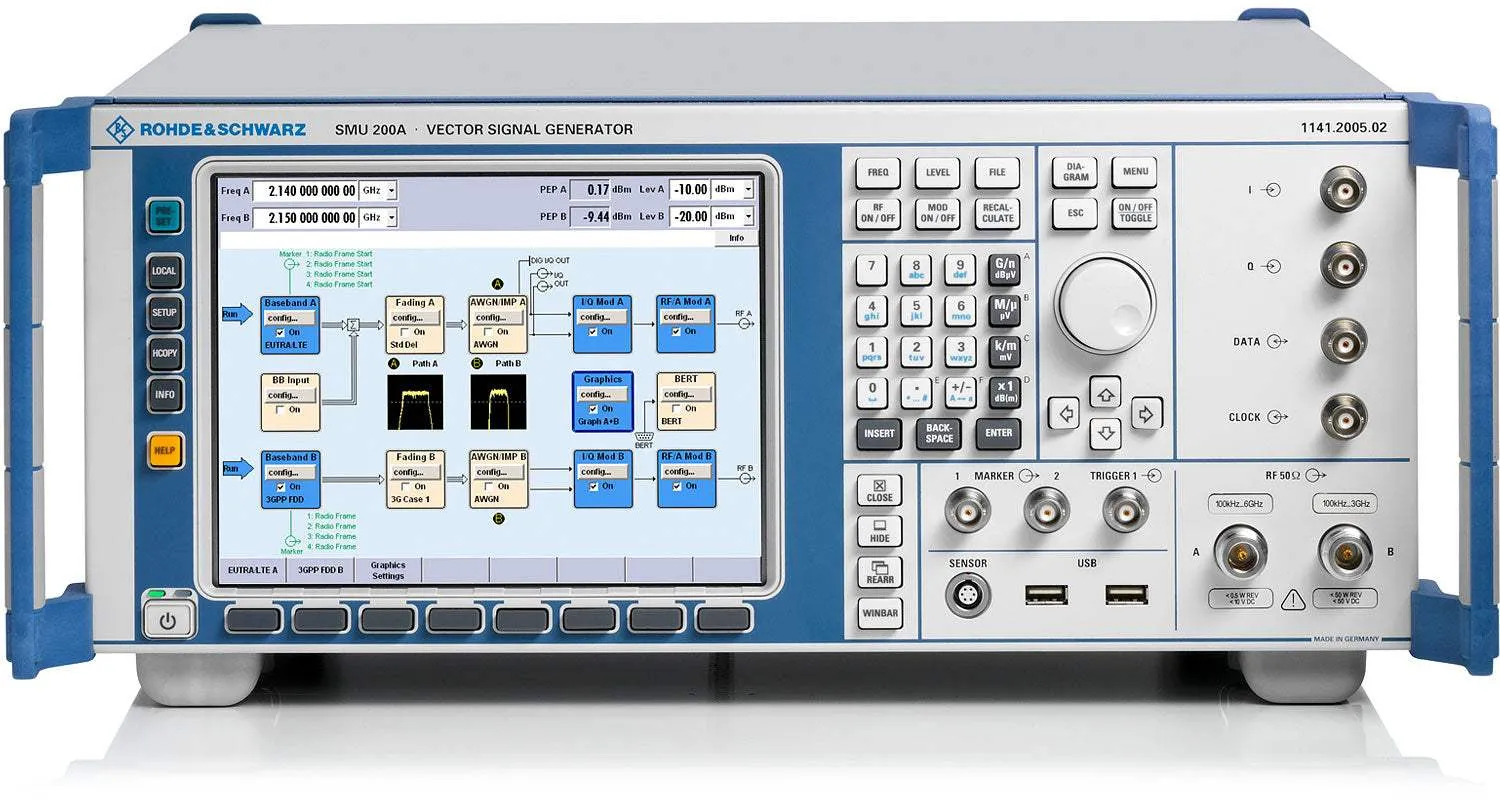

The Rohde & Schwarz SMU200A Vector Signal Generator not only combines up to two independent signal generators in one cabinet of only four height units, it also offers unrivalled RF and baseband characteristics.

The generator has been designed to meet all requirements encountered in research and development of modern communication systems as well as in their production.
