• Interface: 26-Bit, Wiegand Output, HID® & AWID® Supported
• Warranty: Lifetime Limited Warranty
• Environment: Rugged, Weather-Resistant Design
• Access Control: Listed To UL 294
• Energy: 75mA, 5 – 16VDC (Max at 12VDC)
• Frequency & Range: 125kHz, Up to 5" (127mm) (Using 1326R Proximity Card (Clamshell) with 12VDC at the reader)
• Non-Standalone Proximity

Features and benefits:

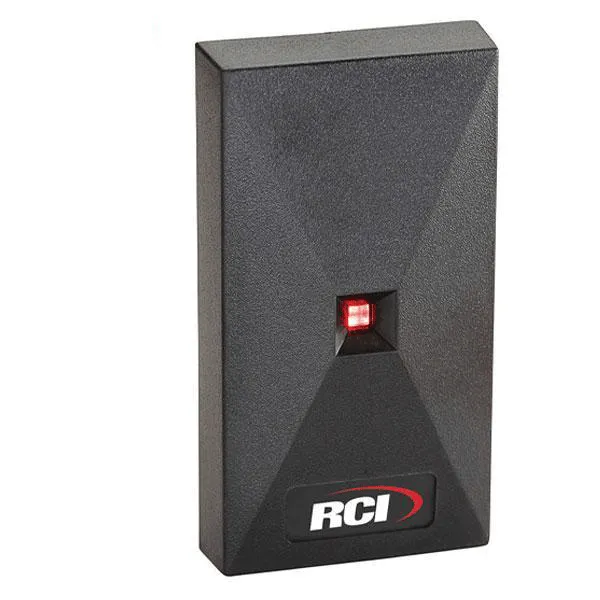

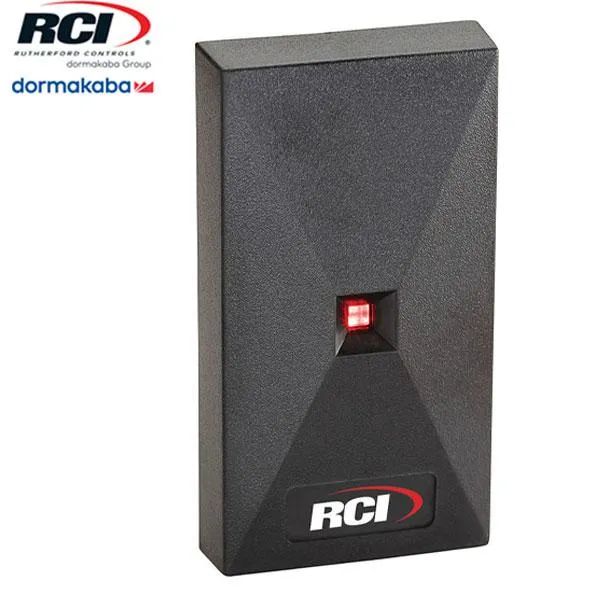

The 6005R mullion proximity reader is designed to slim for areas with minimal surface space to mount a reader. Using RFID technology, the RCI 6005R reader interfaces with a wide range of electronic access control systems by complying with the Wiegand communication protocol. The reader operates at a frequency of 125kHz and has a proximity read range up to 5”. The reader is intended for interior or exterior applications as all electronics are sealed in tamper and weather-resistant epoxy potting.

• Electronics are sealed in tamper and weather resistant epoxy potting
• Includes black & beige snap-on covers
• 26-Bit, Wiegand Output, HID® & AWID® Supported
• Lifetime Limited Warranty
• Rugged, Weather-Resistant Design
• 75mA, 5 – 16VDC (Max at 12VDC)
• Range Up to 5" (127mm)
• Frequency of 125kHz(Using 1326R Proximity Card (Clamshell) with 12VDC at the reader)
• Applications: Doors Parking Barriers Turnstiles Gates
