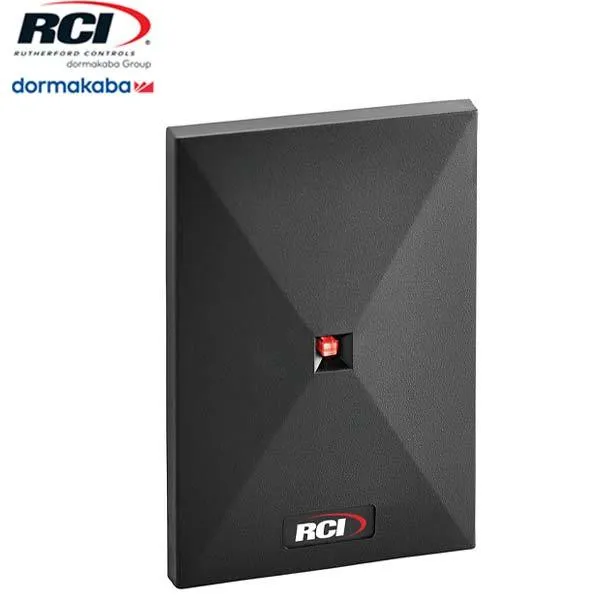

RCI-5395R

• Electronics are sealed in tamper and weather resistant epoxy potting
• Includes black & beige snap-on covers
• 26-Bit, Wiegand Output, HID® & AWID® Supported
• Lifetime Limited Warranty
• Rugged, Weather-Resistant Design
• 75mA, 5 – 16VDC (Max at 12VDC)
• Range Up to 6-1/2" (165mm)
• Frequency of 125kHz (Using 1326R Proximity Card (Clamshell) with 12VDC at the reader)
• UL294 Listed for Access Control Unit Accessory, FCC, ICC, CE, ETL

Features and Benefits:

The 5395R proximity reader has a compact design ideal for single gang wall-box applications. Using RFID technology, the RCI 5395R reader interfaces with a wide range of electronic access control systems by complying with the Wiegand communication protocol. The reader operates at a frequency of 125kHz and has a proximity read range up to 6-1/2”. The RCI 5395R is UL294 listed for certified access control unit accessories.

Application:

• Doors
• Parking Barriers
• Turnstiles
• Gates
