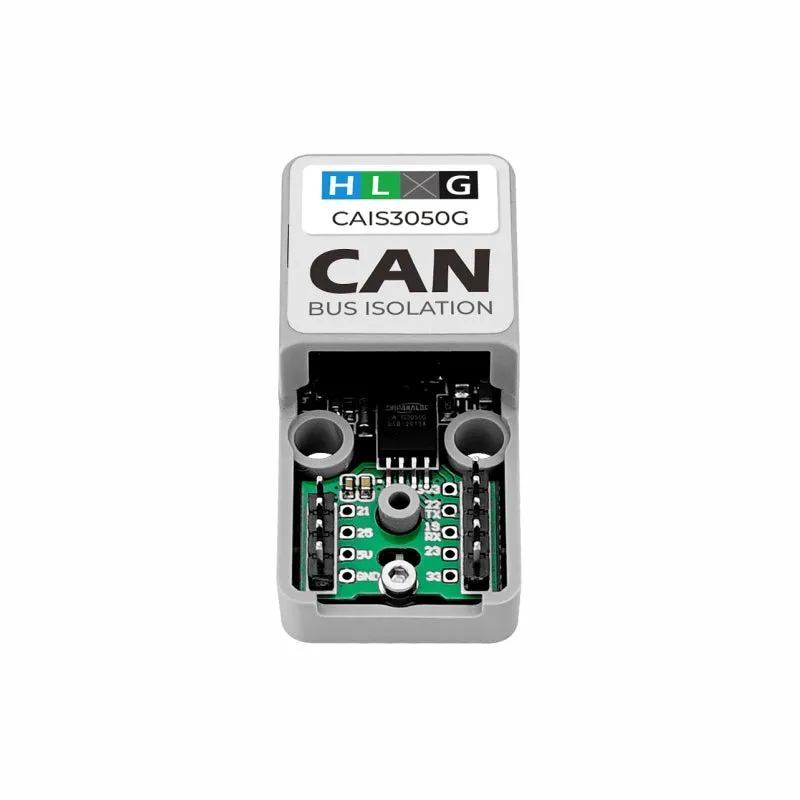

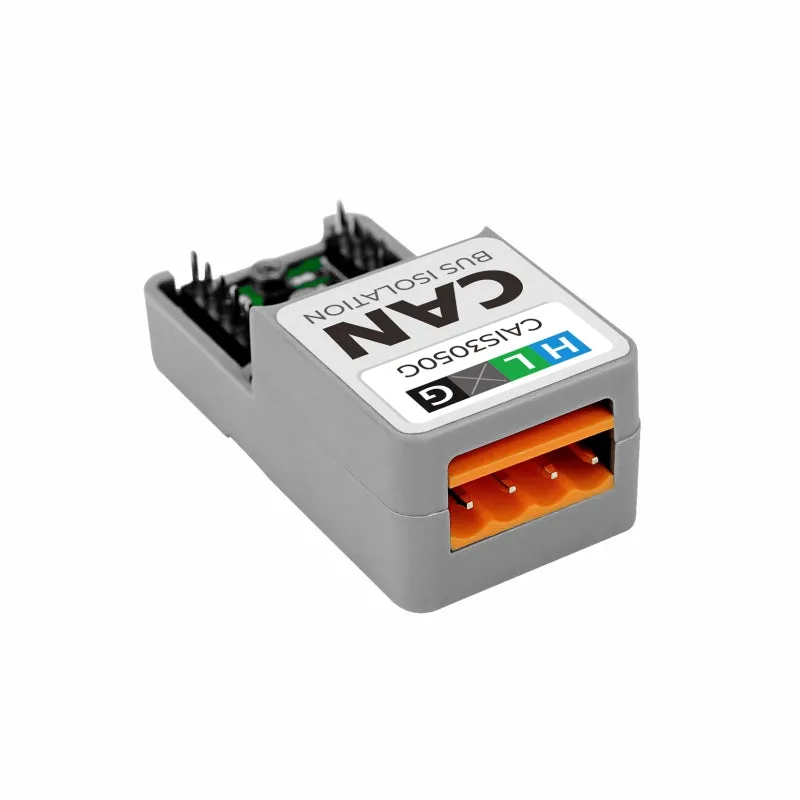

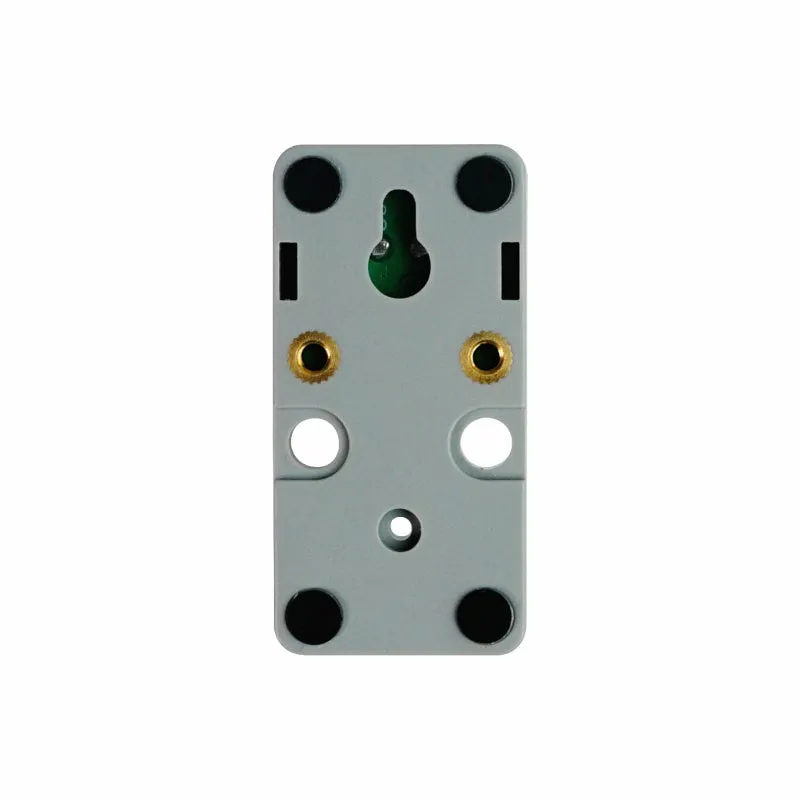

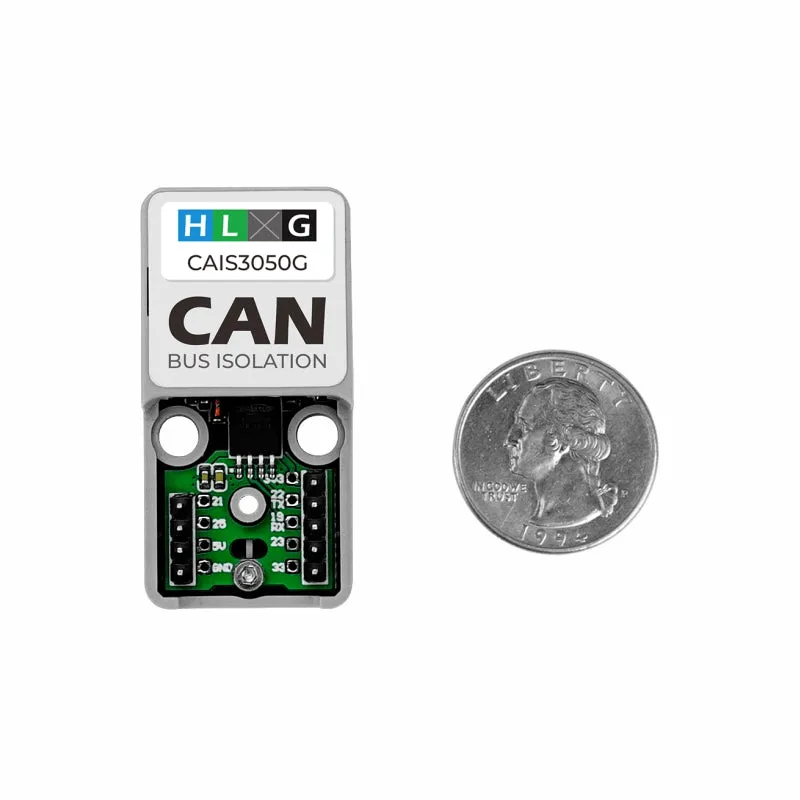

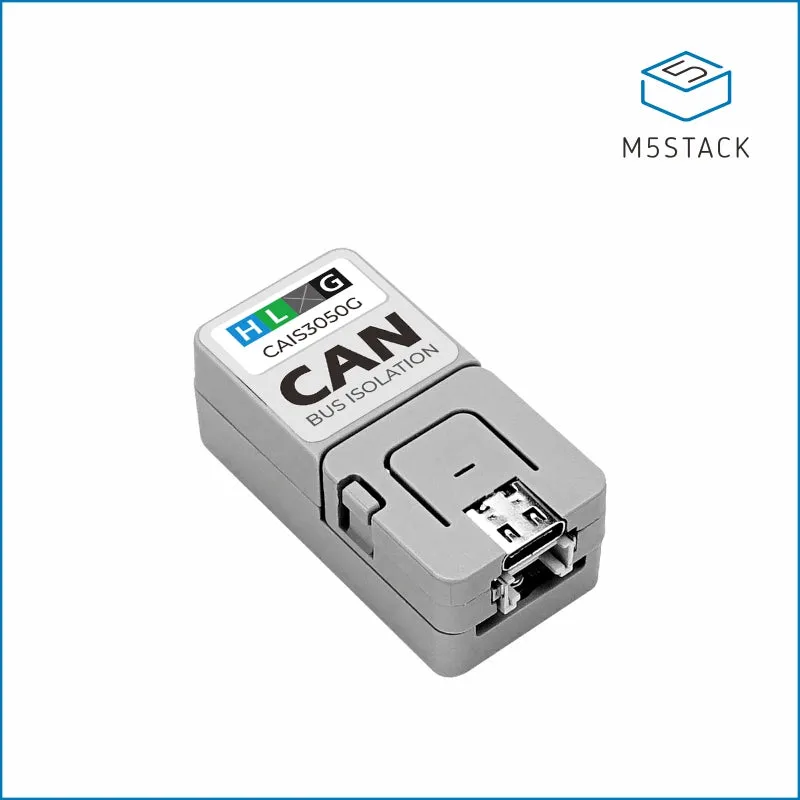

ATOM CAN is a CAN bus communication kit designed for various applications that require reliable and efficient data communication over a CAN bus. It utilizes the CA-IS3050G transceiver solution, which includes a built-in DC-DC isolation power chip. This isolation power chip effectively isolates interference and protects sensitive circuits from damage.

The CAN bus supported by ATOM CAN can accommodate up to 110 nodes, allowing for the connection of multiple devices within a network. The kit supports a signal transmission rate of up to 1Mbps, enabling fast and efficient data transfer.

ATOM CAN kit is equipped with various electrical line protection functions, ensuring the robustness and reliability of the communication system. These protection functions safeguard the unit and other connected devices against electrical disturbances, such as voltage spikes and electromagnetic interference.

This kit is particularly well-suited for application scenarios in the fields of in-vehicle transportation and security systems. In-vehicle transportation systems often rely on the CAN bus for interconnecting various electronic control units within a vehicle. ATOM CAN provides a reliable and secure communication platform for these systems. Similarly, security systems that require communication between different components can benefit from ATOM CAN's capabilities.

Product Features

  • Adapt to ATOM Matrix/ATOM Lite
  • CAN bus multi-point communication
  • Built-in isolated DC-DC
  • Signal rate up to 1Mbps
  • The common mode voltage range is –12V to 12V
  • Protective function:
    • Signal isolation
    • Limiting
    • Over voltage protection
    • Thermal shutdown
    • Ground loss protection (-40V~40V)

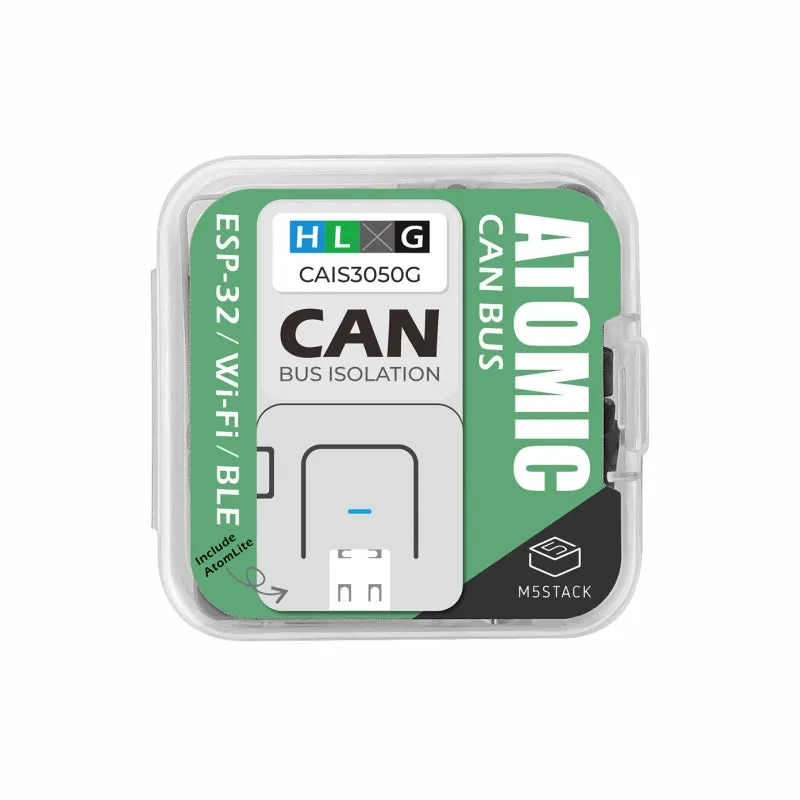

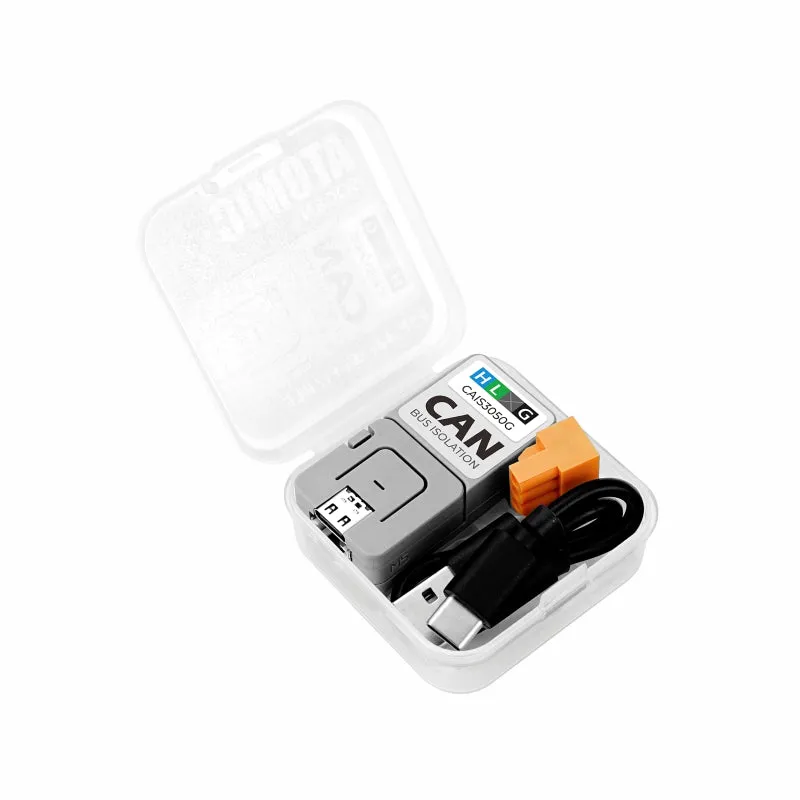

Includes

  • 1x ATOMIC CAN
  • 1x 3.96-4P terminal
  • 1x 120Ω terminal resistor

Application

  • CAN bus communication
  • Vehicle equipment control
  • Industrial field control

Specifications

Resources Parameter
External port VH-3.96-4P
CAN transceiver model CA-IS3050G
Maximum rate 1Mbps
Number of supported nodes 110
Low loop delay -150ns
Common mode voltage -12V ~ 12V
Protection function Current limit, over voltage, main dynamic timeout, thermal shutdown
Working temperature –55°C-125°C
Net weight 14g
Gross weight 33g
Product size 24*48*18mm
Package size 54*54*20mm
Shell material Plastic (PC )

LEARN AND DOCUMENTS

  • [EOL] ATOM CANBus Kit (CA-IS3050G)
