Product Details
＋
Cleerline TN012M3D9AP-1k Description

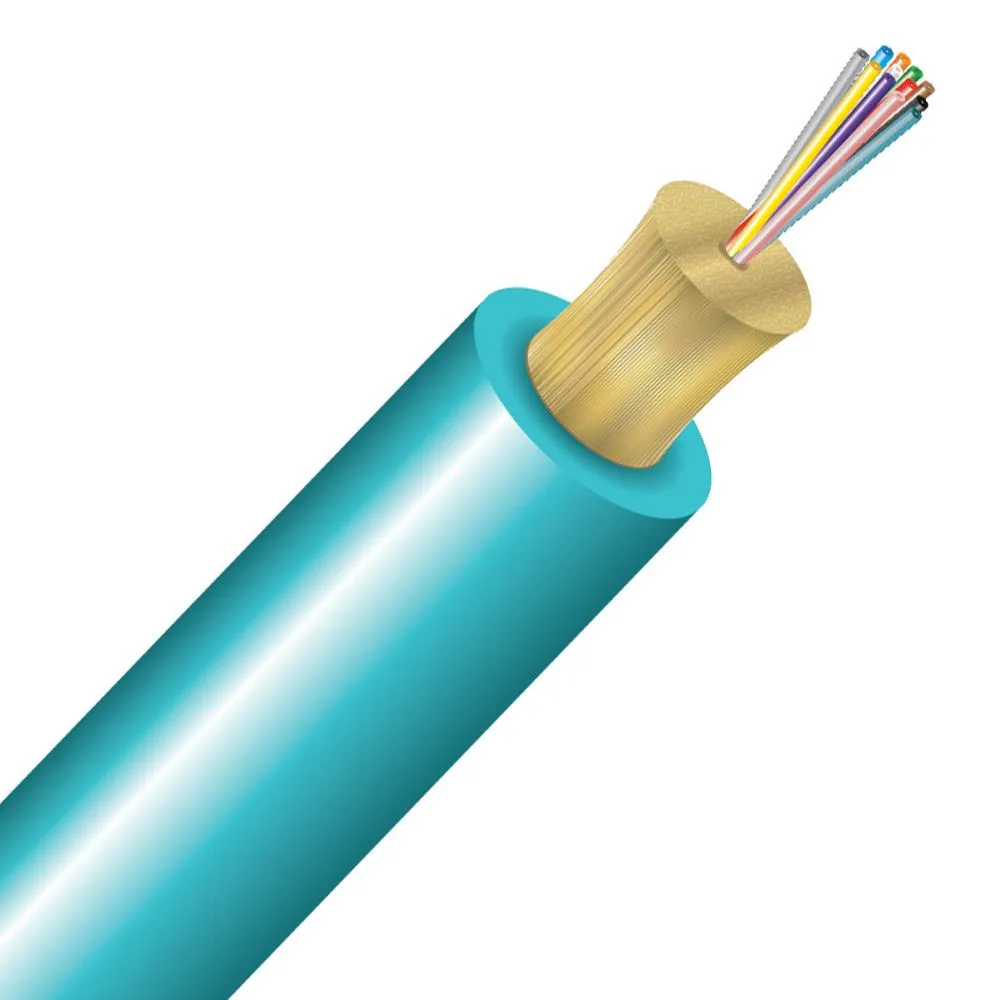

Cleerline TSB™ - Traditional Stronger BendSafe® 12 strand 900?m Tight Buffered fiber is a distribution style cable with an overall Plenum jacket. TSB™ Distribution is ideal for inter-building or intra-building data communication backbones. Cleerline TSB™ Distribution Multimode is fully compatible with all common connector systems for 50/125 multimode fiber. Cleerline TSB™ fibers provide the ultimate in reliable signal transfer in today’s traditional fiber constructions.
Cleerline TN012M3D9AP-1k Includes
- (1) 1000ft Spool 12 Strand OM3 Cable
Cleerline TN012M3D9AP-1k Features
- TSB™ Dynamic Fatigue rating Nd ? 27
- High mechanical strength
- TSB™ 900 ?m tight buffered fibers
- Compatible with common connector systems for 9/125 single mode.
- Manufactured to exact tolerances and specifications
- Ultra low attenuation on tight bend radius
- Plenum
Cleerline TN012M3D9AP-1k Specifications
| Fiber | 50/125 Multi Mode OM3 |
| Color | Aqua |
| Outer Diameter | 6.4mm |
| Max Tensile Load | 2700 N (607 lbf) |
| Min. Bend Radius, Unloaded | 10 x O.D. |
| Min. Bend Radius, Loaded | 20 x O.D |
